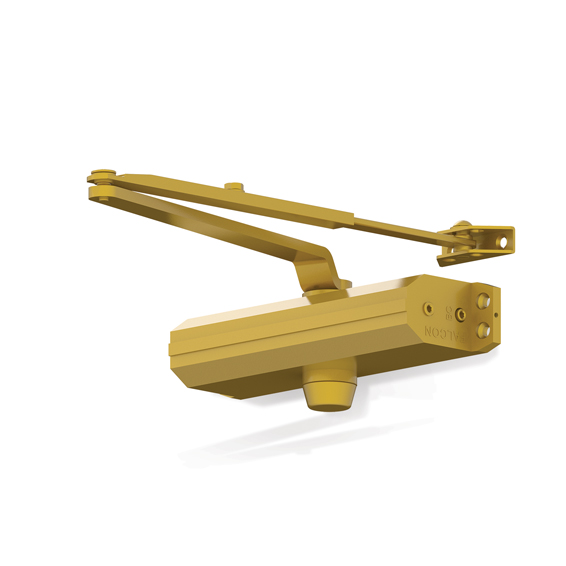

SC60A Series Closers

This light- to medium-duty closer is designed for commercial applications like a small boutique or office.

Looking for more information? Connect with an Allegion team member for help.

Overview

The SC60A Series is designed for light- to medium-duty applications, like a small business or office building. It is intended for interior use with aluminum storefronts and mixed-use complexes. It mounts three ways and features the most common hole pattern in the door control industry, making it ideal for a variety of retrofit needs.

The SC60A Series features a single-piece cast aluminum body and a 1-3/8” heat-treated steel piston, a heat-treated pinion and staked valves. The SC60A Series standard door closer is certified ANSI/BHMA A156.4 Grade 1, is UL listed and is backed by a 10-year warranty.

Body construction

  • Single-piece cast aluminum body
  • Heat-treated steel pinion and piston
  • Industry common hole pattern that can retrofit to Norton 1600

Quality and durability

  • UL 10C approved fluid
  • Separate adjustable general speed, latch speed and backcheck
  • 10-year warranty

Installation

  • Universal non-handed
  • Universal screw pack
  • Adjustable spring sizes 1-5
  • UL listed and compliant with the UL 10C and UBC 7-2 (1997) fire test
  • Certified ANSI/BHMA A156.4 Grade 1
  • The SC61A meets the American Disabilities Act (ADA) and ANSI A117.1
  • Available in:
    • Aluminum
    • Dark bronze
    • Matte black*
    • Brass

      *Matte Black (622) is only available on standard cylinders and RW/PA, HW/PA, DS and HD
  • Optional slim line cover
  • The SC60A Series mounts hinge pull side, push side top jamb, push side parallel arm, heavy duty parallel arm and hold open parallel arm. Visit the SC60A Series catalog pages for mounting details, arm options and accessories.
