Pin and Barrel Continuous Hinges

The steel pin and barrel continuous hinges stretches along the entire length of the door and frame, ensuring door alignment is maintained for the lifetime of the building.

Looking for more information? Connect with an Allegion team member for help.

Overview

Steel pin and barrel continuous hinges share many of the same characteristics of a traditional hinge. Both have a center pin and rolled knuckles, but a steel pin and barrel continuous hinge stretches along the entire length of the frame.

The unique design distributes the weight of the door along the entire length of the frame, reducing the high amount of stress normally associated at top of door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps the door in constant alignment, eliminating door sag. These characteristics make continuous hinges suitable for high-use and high-traffic doors.

The design of a continuous hinge eliminates the gap between the door and the frame. The absence of gap also helps prevents fingers from being pinched, making it a safer device than traditional hinges. These benefits result in higher efficiency and less maintenance, maximizing the value of any opening investment. Ives offers both stainless steel and primed steel to best match specific applications.

Reliability

  • Come standard with nylon self-lubricating, medical grade split bearing
  • Non-handed for custom cut lengths

Aesthetics

  • Standard Series
    • The standard series pin and barrel continuous hinges features twin self lubricated nylon bearings with a stainless steel pin
  • CS Series

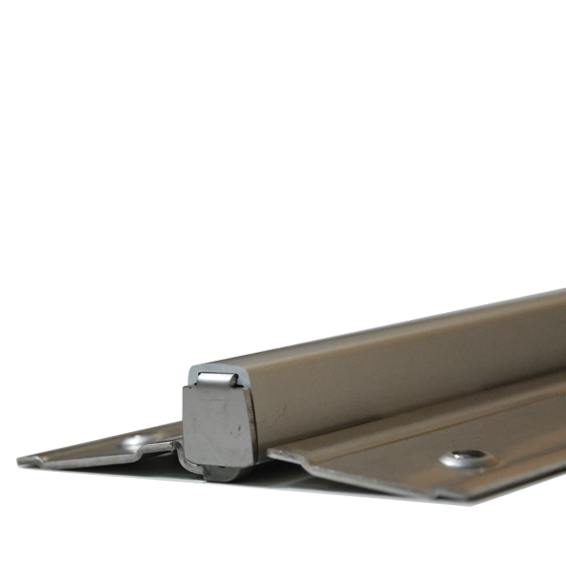

    • The CS Series is a heavy duty, easy-to-install, stainless steel pin and barrel continuous hinge that can be used for fire applications and is highly suitable for after-market or new construction situations. The patented covers hide the unsightly pin and barrel of the standard pin and barrel hinges, giving the CS Series continuous hinge a stylish appearance to accompany heavy duty performance.
    • The CS Series includes medical grade, patented nylon winged bearings. They also include the XY adjustability feature which allows for better door alignment during installation.

Exceeds industry standards

  • Tested and approved to be UL 10C (3hr)
  • Certified to ANSI 156.26, Grade 1
  • Limited lifetime warranty

Designs

For a complete list of model numbers and model number specifications please reference the Ives full line catalog.

  • Full Mortise: hinge is mounted on the door stile’s side and the inside of the frame side jamb, so only the pin and barrel is visible when the door is closed. Offering includes the following models: 600, 700, 700CS

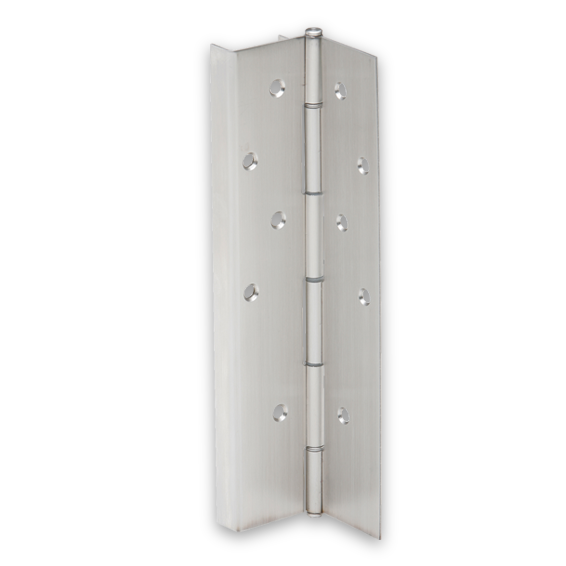

  • Full Mortise – Full Wrap: hinge is mounted on the door stile’s side, completely wrapping around it, and the inside of the frame side jamb. Only the pin, barrel and a small portion of the hinge is visible when the door is closed. Offering includes the following models: 705
  • Full mortise – half wrap: hinge is mounted on the door stile’s side, wrapping half way around it, and the inside of the frame side jamb. Only the pin and barrel and a small portion of the hinge is visible when the door is closed. Offering includes the following models: 715, 715CS
  • Full surface: hinge is mounted on the door stile’s face and the frame side jamb face, so the entire hinge is visible when the door is closed. The pin and barrel section is located where the door stile and frame side jamb meet. Offering includes the following models: 602, 702

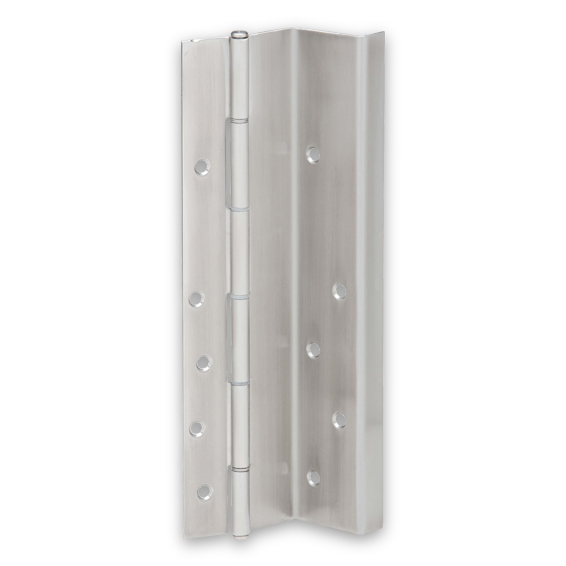

  • Swing clear: hinge is mounted on the door stile’s side and the frame side jamb face so the entire hinge is visible when the door is closed; the pin and barrel portion is located over the side jamb. Offering includes the following models: 611, 711, 711CS

Finishes

  • 600 Series available in 600 (USP) grey primer paint
  • 700 Series available in 630 (US32D) satin stainless steel
  • CS Series available in a wide variety of finishes to match your other door hardware. See catalog for a list of available finishes.
  • Custom finishes are also available; consult the factory

Ives geared continuous hinges can be furnished with the following options:

  • Electric power transfer prep (EPT)*
  • Through wire panel (TWP); available only in CS Series hinges*
  • Electric through wire (TW8)*
  • Hospital tips
  • Security fasteners – torx
  • Wood fasteners

* Full mortise models only
