Digital Keypads

The DKP Series keypads are designed for simple access control or code control for up to four individual devices. These keypads are a great choice for controlling electric strikes, electromagnetic locks, security systems or other types of openings requiring on/off or momentary control outputs.

Looking for more information? Connect with an Allegion team member for help.

Overview

The DKP Series keypads are designed for simple access control or code control for up to four individual devices. These keypads are a great choice for controlling electric strikes, electromagnetic locks, security systems or other types of openings requiring on/off or momentary control outputs.

DKP-165 Series

  • Fully programmable with up to 480 users with 1 to 6 digit user codes
  • Keys are back-lit for visibility in dark areas with audible and visual key press feedback
  • 12/24 VDC, switch contacts rated @ 2A/30VAC/VDC
  • Multi-colored LEDs indicate the state of the keypad
  • Timed anti-pass back
  • 302 stainless steel gang plate
  • Operating temperature range is -10° F to +130° F
  • Available in surface mount (DKP-165-S) or flush mount (DKP-165-FM)
  • Tamper resistant screws included for faceplate (DKP-165-S only)
  • Designed for indoor use (DKP-165)

DKP-NS Series features and benefits

  • Designed for outdoor use
  • Allows for up to 1010 user codes (zone 1: 1000 users, zone 2: 10 users)
  • 12/24 VAC/VDC
  • Incorporates a tamper alarm feature as a standard option
  • Relock time 0-99 s
  • Two-zone feature provides 2 relays and 2 exit button outputs for two-zone applications
  • Backlit numbers allow for ease of use in dimly-lit areas (Blue keypad illumination)
  • Operating temperature -22°F – 158°F
  • IP66 Rating: waterproof, dust proof

DKP-165

  • 4 3⁄4" x 3" x 1 3⁄8"
  • (120mm x 76mm x 34.9mm)

DKP-165-S

  • 4 15⁄16" x 4 1⁄8" x 2 3⁄8"
  • (125mm x 105mm x 60mm)

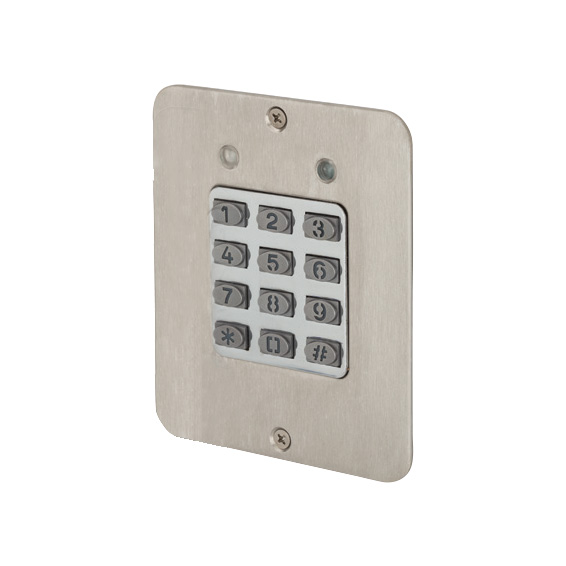

DKP-165-FM

  • 4 3⁄4" x 3 15⁄16" x 1 1⁄2"
  • (120mm x 100mm x 37.4mm)

DKP-NS

  • 1 11⁄16" x 5 7⁄8" x 15⁄16"
  • (43.2mm x 149.9mm x 24.1mm)
  • DKP-165 Indoor digital keypad; Up to 480 users with timed anti-pass back
  • DKP-165-S Digital keypad; Surface mount with case; Up to 480 users with timed anti-pass back
  • DKP-165-FM Digital keypad; Flush mount; Up to 480 users with timed anti-pass back
  • DKP-NS1 Outdoor digital keypad; Up to 1,010 users with two zone, re locking time delay
